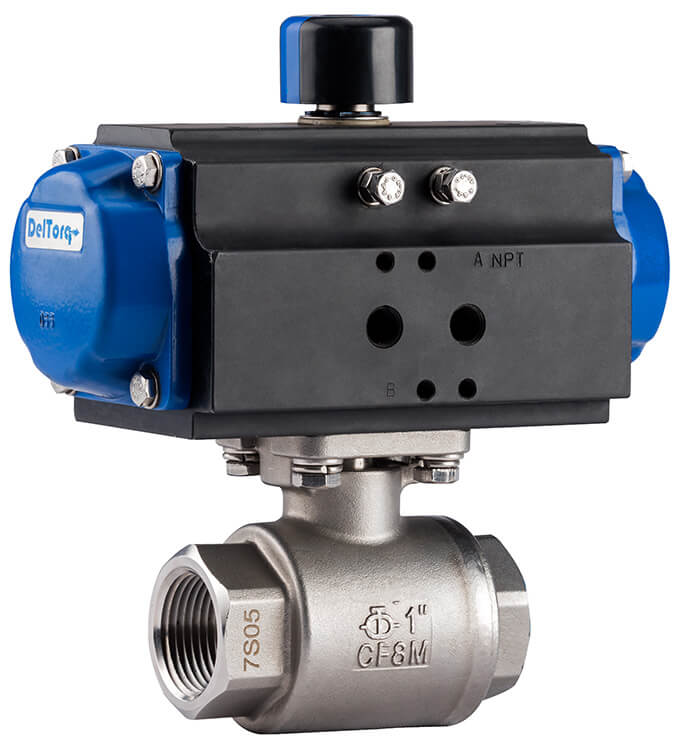

Series 2000 Shut Down Valve

Description:

Firesafe design and NACE versions available.

Body Type

Threaded

Body

SS

Ball

SS

Stem

SS

Seat

RTFE

Size Range

1/2”, 1”, 2”

Pressure Rating

2000 psi

Leakage Class

Class VI

Design Standard

API 608, ASME B16.34

Testing Standard

API 598

Scroll to the right

Features

  • 2000 PSIG WOG
  • Integral top plate for direct mount actuation
  • Top plate is open for leak detection
  • Seal welded CF8M body
  • Full port/threaded ends
  • 316SS ball & stem
  • Blowout proof stem/floating ball
  • Adjustable packing
  • Available sizes in 1/2
  • Fire tested & certified to API 607, 6th edition
  • Conforms to ANSI/NACE MR0175/ISO15156 specifications
